SQL Optimization Practices Episode 5: Pushing LIMIT Down to UNION Branches Performance

Introduction

In high-volume data scenarios, performance optimization for UNION queries is particularly critical. When pagination is required for union query results, traditional approaches that apply LIMIT externally often process all intermediate results, leading to unnecessary resource consumption. This article explores pushing LIMIT down to each UNION branch, effectively reducing the scale of intermediate datasets and improving query performance.

I. Test Data Generation (TPC-H Standard Dataset Extension)

Creating Test Tables

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
CREATE TABLE customer(
  c_custkey INT PRIMARY KEY,
  c_nationkey INT NOT NULL,
  c_name VARCHAR(25) NOT NULL
) ENGINE=InnoDB;

CREATE TABLE supplier(
  s_suppkey INT PRIMARY KEY,
  s_nationkey INT NOT NULL,
  s_name VARCHAR(25) NOT NULL
) ENGINE=InnoDB;

Batch Data Insertion

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
-- Insert 10 million customer records (country key randomly distributed from 1 to 50)
INSERT INTO customer
WITH RECURSIVE seq AS(
  SELECT 1 AS n UNION ALL SELECT n+1 FROM seq WHERE n<10000000
)
SELECT
  n,
  FLOOR(RAND()*50)+1,
  CONCAT('Customer#',LPAD(n,10,'0'))
FROM seq;

-- Insert 2 million supplier records (country key randomly distributed from 1 to 50)
INSERT INTO supplier
WITH RECURSIVE seq AS(
  SELECT 1 AS n UNION ALL SELECT n+1 FROM seq WHERE n<2000000
)
SELECT
  n,
  FLOOR(RAND()*50)+1,
  CONCAT('Supplier#',LPAD(n,10,'0'))
FROM seq;

Creating Index

1
2
CREATE INDEX idx_customer_nation ON customer(c_nationkey);
CREATE INDEX idx_supplier_nation ON supplier(s_nationkey);

II. SQL Optimization

Original SQL

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
-- Original SQL (Retrieve Records 21-30)
SELECT *
FROM (
  SELECT c_nationkey nation, 'C' type, COUNT(*) num
  FROM customer
  GROUP BY c_nationkey
  UNION
  SELECT s_nationkey nation, 'S' type, COUNT(*) num
  FROM supplier
  GROUP BY s_nationkey
) AS combined
ORDER BY nation
LIMIT 20,10;

Optimizing SQL: Rewriting with SQLFlash

Attempting to refactor query logic through SQLFlash’s real-time semantic translation capabilities.

The rewritten SQL is as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
SELECT *
FROM (
  (SELECT c_nationkey nation, 'C' type, COUNT(*) num
   FROM customer
   GROUP BY c_nationkey
   ORDER BY c_nationkey LIMIT 30)
  UNION
  (SELECT s_nationkey nation, 'S' type, COUNT(*) num
   FROM supplier
   GROUP BY s_nationkey
   ORDER BY s_nationkey LIMIT 30)
) AS combined
ORDER BY nation
LIMIT 20,10;

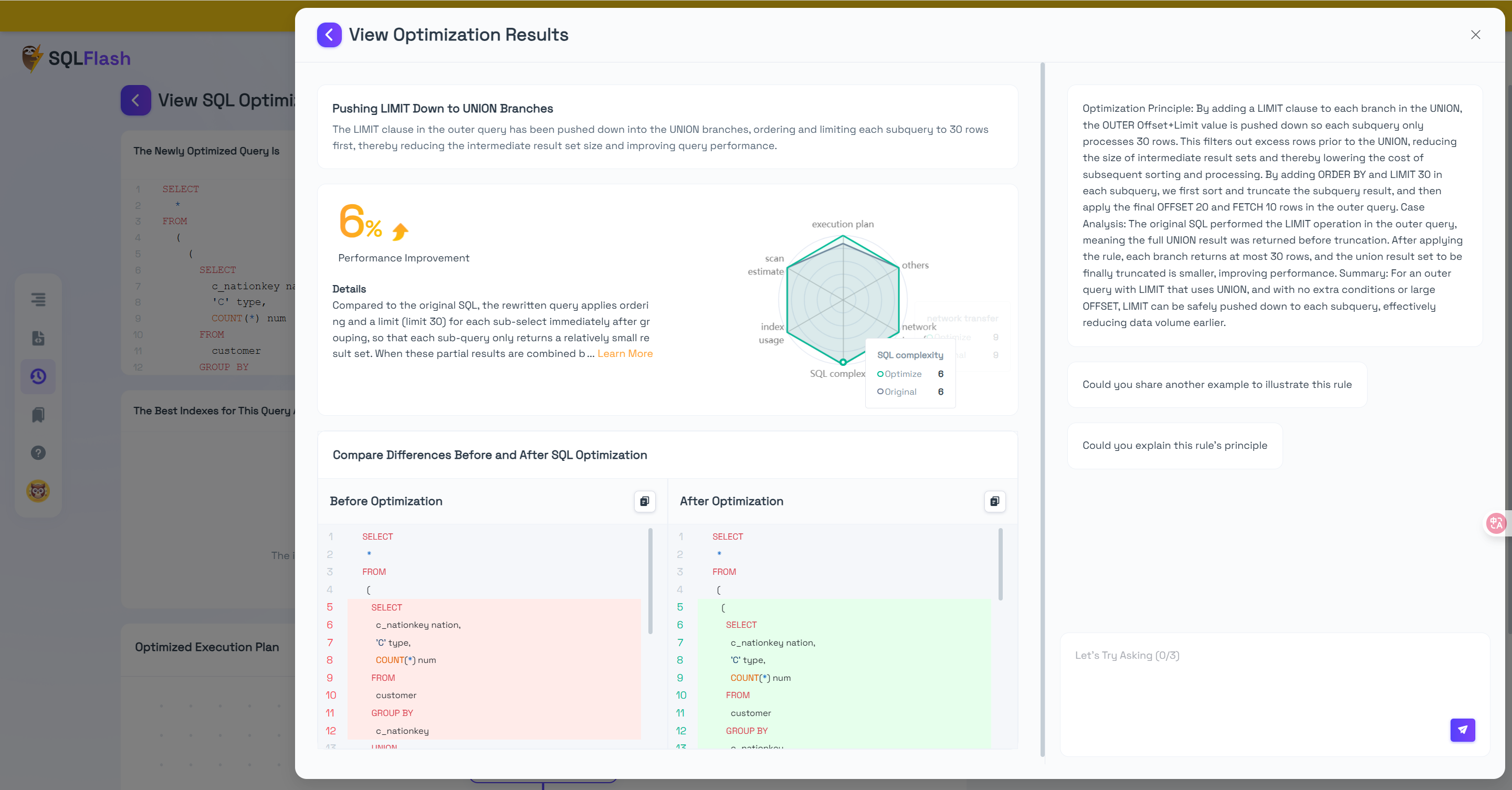

View Detailed Report

III. Performance Comparison Test

Test Environment

Database Version: MySQL 8.0.28
Hardware Configuration: 4-core CPU / 8GB RAM / SSD
Data Scale:
- customer table: 10 million rows (50 countries)
- supplier table: 2 million rows (50 countries)

Test Results

Metric	Traditional Writing (External LIMIT)	Optimized Writing (LIMIT Pushdown)	Performance Improvement
Execution Time	1.25 seconds	0.76 seconds	40%
Scanned Rows	More than 12 million rows	60 rows	-
Temporary Table Size	Very large	Small	-

IV. Performance Analysis

SQLFlash Analysis

Compared to the original SQL, the rewritten query performs sorting and limits the output rows (LIMIT 30) immediately after each subquery completes grouping. This significantly reduces the size of the result sets generated by each subquery. After the UNION operation, only a smaller number of rows need to be sorted and paginated to obtain the final results. This approach effectively alleviates the burden on the final sorting phase and minimizes unnecessary sorting work after merging results, thereby reducing overall execution time and memory usage. For query scenarios, early sorting and row-limiting on grouped results can significantly lower the processing cost of subsequent UNION and sorting operations, improving query performance and response speed.

Bottlenecks in the Traditional Approach

Full data processing: Each UNION branch generates aggregated results for all 50 countries (100 records in total).
Double sorting overhead: Performs a full sort on the UNION result set first, then applies LIMIT pagination.
Memory pressure: Requires maintaining 12 million intermediate rows in memory.

Advantages of the Optimized Solution

Early data filtering: Each branch retrieves only 30 records (meeting the final requirement of 30 results).
High index utilization: Uses the (c_nationkey) index to directly obtain ordered results.
Reduced Resource Consumption:
- The temporary table contains only 60 rows, resulting in lower performance overhead.
- By utilizing an index (type = index) and processing a small data volume, disk I/O and CPU consumption are significantly reduced.

Execution Plan Comparison

Original SQL Execution Plan:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
mysql> explain SELECT * FROM (   SELECT c_nationkey nation, 'C' type, COUNT(*) num   FROM customer   GROUP BY c_nationkey   UNION   SELECT s_nationkey nation, 'S' type, COUNT(*) num   FROM supplier   GROUP BY s_nationkey ) AS combined ORDER BY nation  LIMIT 20,10;
+----+--------------+------------+------------+-------+---------------------+---------------------+---------+------+----------+----------+-----------------+
| id | select_type  | table      | partitions | type  | possible_keys       | key                 | key_len | ref  | rows     | filtered | Extra           |
+----+--------------+------------+------------+-------+---------------------+---------------------+---------+------+----------+----------+-----------------+
|  1 | PRIMARY      | <derived2> | NULL       | ALL   | NULL                | NULL                | NULL    | NULL | 11963874 |   100.00 | Using filesort  |
|  2 | DERIVED      | customer   | NULL       | index | idx_customer_nation | idx_customer_nation | 4       | NULL |  9969732 |   100.00 | Using index     |
|  3 | UNION        | supplier   | NULL       | index | idx_supplier_nation | idx_supplier_nation | 4       | NULL |  1994142 |   100.00 | Using index     |
| NULL | UNION RESULT | <union2,3> | NULL       | ALL   | NULL                | NULL                | NULL    | NULL |     NULL |     NULL | Using temporary |
+----+--------------+------------+------------+-------+---------------------+---------------------+---------+------+----------+----------+-----------------+
4 rows in set, 1 warning (0.00 sec)

Optimized Execution Plan:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
mysql> explain SELECT * FROM (   (SELECT c_nationkey nation, 'C' type, COUNT(*) num    FROM customer    GROUP BY c_nationkey    ORDER BY c_nationkey LIMIT 30)   UNION   (SELECT s_nationkey nation, 'S' type, COUNT(*) num    FROM supplier    GROUP BY s_nationkey    ORDER BY s_nationkey LIMIT 30) ) AS combined ORDER BY nation  LIMIT 20,10;
+----+--------------+------------+------------+-------+---------------------+---------------------+---------+------+------+----------+-----------------+
| id | select_type  | table      | partitions | type  | possible_keys       | key                 | key_len | ref  | rows | filtered | Extra           |
+----+--------------+------------+------------+-------+---------------------+---------------------+---------+------+------+----------+-----------------+
|  1 | PRIMARY      | <derived2> | NULL       | ALL   | NULL                | NULL                | NULL    | NULL |   60 |   100.00 | Using filesort  |
|  2 | DERIVED      | customer   | NULL       | index | idx_customer_nation | idx_customer_nation | 4       | NULL |   30 |   100.00 | Using index     |
|  3 | UNION        | supplier   | NULL       | index | idx_supplier_nation | idx_supplier_nation | 4       | NULL |   30 |   100.00 | Using index     |
| NULL | UNION RESULT | <union2,3> | NULL       | ALL   | NULL                | NULL                | NULL    | NULL | NULL |     NULL | Using temporary |
+----+--------------+------------+------------+-------+---------------------+---------------------+---------+------+------+----------+-----------------+
4 rows in set, 1 warning (0.00 sec)

V. Conclusion

Through LIMIT pushdown optimization, the following can be achieved:

Performance Leap: 40% improvement in query speed.
Resource Savings: The temporary table contains only 60 rows, resulting in lower performance overhead.
Enhanced Scalability: Slower performance degradation as pagination depth increases.

Final Recommendations: For paginated queries involving UNION/UNION ALL, prioritize pushing LIMIT down to each branch, while ensuring:

Create appropriate indexes on sorting columns.
Calculate branch LIMIT values (considering the sum of OFFSET and page size).
Use UNION ALL instead of UNION to eliminate deduplication overhead (when business requirements allow).
